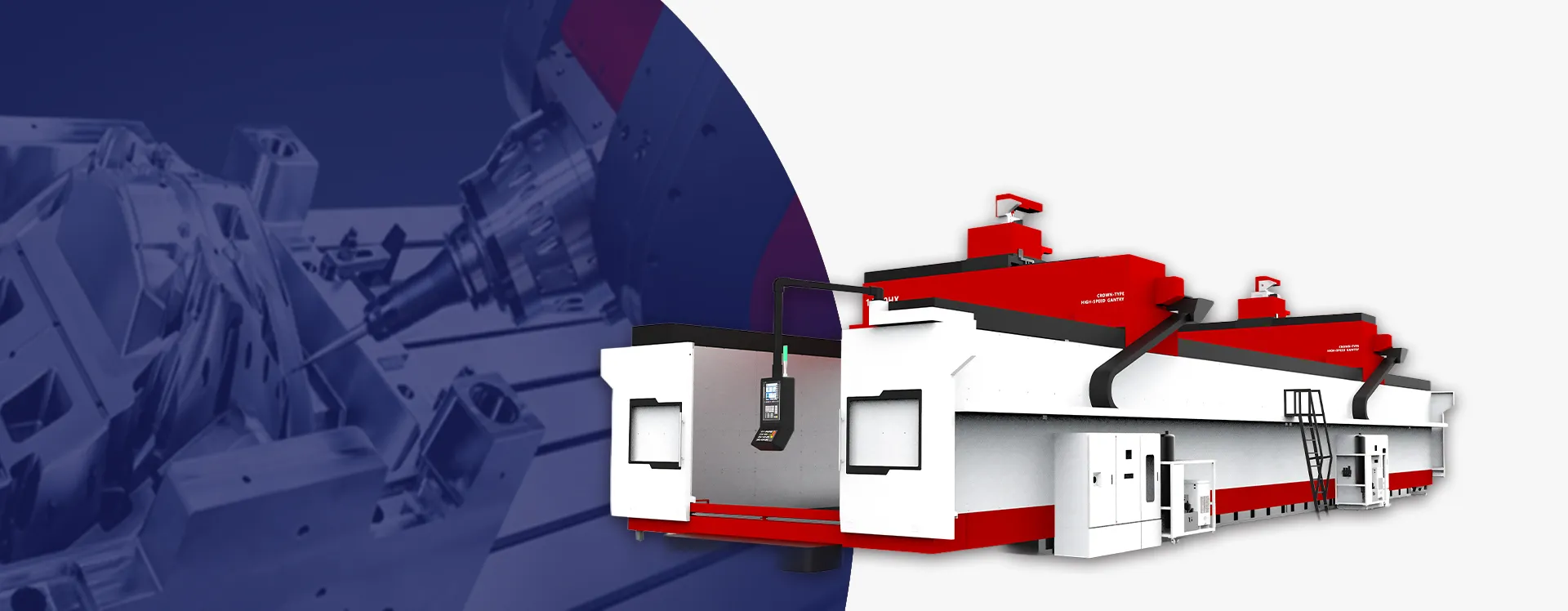

HPG Series: High-Precision CNC Gantry Machining Centers
The HPG Series offers high-precision CNC gantry machining centers designed for heavy-duty cutting applications. Featuring a movable gantry design, these machines provide exceptional rigidity and stability, ensuring superior performance in complex machining tasks.
Key Features of the HPG Series CNC Gantry Machining Centers
- Uncompromised Load Capacity: The HPG Series CNC Gantry Machining Centers are engineered to handle workpieces of varying weights without compromising performance. As long as the workpiece fits within the machine’s dimensions, it can be precisely machined.
- Consistent High-Speed Performance: The machine maintains consistent movement speeds, aligning with its design specifications, regardless of the workpiece weight. This ensures high speed, precision, efficiency, and extended machine lifespan.
- Stable and Durable Moving Components: Designed for stability, the moving parts experience minimal and uniform wear, contributing to the machine’s longevity and sustained accuracy over time.
- Precision Retention: The machine’s moving components are engineered to minimize impact changes, ensuring long-term precision even after extended use.
- Consistent Movement Calibration: During setup, the machine is calibrated based on actual load data, with compensation adjustments made accordingly. With a constant moving mass, the machine achieves high precision in all operations.
- Fixed Moving Mass with Dual Servo Drive: The moving mass remains constant, and the X-axis utilizes a dual servo direct drive system, effectively ensuring machining accuracy.
- Compact Footprint: Occupying less floor space, the HPG Series offers the same processing capabilities as traditional movable table machines but with a footprint reduced by up to 60%.
- Enhanced Guideway Protection: All axial guideways and protective components are positioned above the workpiece, simplifying maintenance. This design prevents debris, dust, and cutting fluids from contaminating the guide rails, ensuring better protection and separate collection of rail lubrication oil, preventing contamination of cutting fluids.
- Simultaneous Loading and Machining: For enhanced productivity, it’s possible to load new workpieces on one side of the machine while machining occurs on the other, provided safety protocols are strictly followed.
HPG Series CNC Gantry Machining Center Specifications
term | HPG1810 | HPG2216 | HPG3016 | HPG4016 | HPG3020 |
Travel (X/Y/Z)mm | 2000*1050*550 | 2500*1600*800 | 3200*1600*800 | 4200*1600*800 | 3200*2000*1000 |
Table size | 1900*1000 | 2200*1600 | 3000*1600 | 4000*1600 | 3000*2000 |
(mm) | |||||
Max feeding Height | 730 | 950 | 950 | 950 | 1150 |
Spindle taper | BT50 | ||||
Power | 12/18KW 115/172NM | SIEMENS :16/20KW 162/243NM | |||
FANUC :15/18.5KW 143/177NM | |||||
Spindle RPM | 8000rpm(Belt) | ||||
Rapid feed rate (X/Y/Z) | 20/20/20M/min | ||||
Max feeding width | 1300 | 2000 | 2000 | 2000 | 2400 |
Machine weight(Tom) | 15.5 | 25 | 30 | 33 | 38 |
Machine size | 4800*3150*2800 | 5200*4000*3400 | 6000*4000*3400 | 7000*4000*3400 | 6000*4000*3600 |
Control system | SIEMENS 828D / FANUC 0iMF /SIEMENS ONE (5A xis) |
term | HPG4025 | HPG6025 | HPG6030 | HPG8030 | HPG12030 |
Travel (X/Y/Z)mm | 4200*2500*1200 | 6200*2500*1200 | 6200*3000*1200 | 8200*3000*1200 | 12200*3000*1200 |
Table size | 4000*2100 | 6000*2100 | 6000*2600 | 8000*2600 | 12000*2600 |
(mm) | |||||
Max feeding height | 1500mm(can be customized) | ||||
Spindle taper | BT50 | ||||
Spindle power | 28/42KW 268/401NM(gearbox1070/1604NM) | ||||
Spindle RPM | 8000rpmBelt)/Gearbox6000rpm(op) | ||||
Rapid feed rate (X/Y/Z) | 20/20/20M/min | ||||
Max feeding Width | 3160 | 3160 | 3600 | 3600 | 3600 |
Machine weight (Tom) | 42 | 52 | 58 | 70 | 115 |
Machine Size mm | 7500*6100*4000 | 9500*6100*4000 | 9500*6600*4000 | 11500*6600*4000 | 15500*6600*4000 |
Control system | SIEMENS 828D | 840D |
term | HPG4035 | HPG6035 | HPG8035 | HPG12035 |
Travel (X/Y/Z)mm | 4200*4000*1200 | 6200*4000*1200 | 8200*4000*1200 | 12200*4000*1200 |
Table size | 4000*1800 | 6000*1800 | 8000*2600 | 12000*2600 |
(mm) | ||||
Max feeding height | 1500mm(can be customized) | |||
Spindle taper | BT50 | |||
Spindle power | 28/42KW 268/401NM( gearbox 1070/1604NM) | |||
Spindle RPM | 8000rpm(Belt )/Gearbox6000rpm(op) | |||
Rapid feed rate (X/Y/Z) | 20/20/20M/min | |||
Max feeing width | 3500 | |||
Machine weight (Tom) | 48 | 58 | 70 | 115 |
Machine size mm | 7500*6600*4000 | 9500*6600*4000 | 11500*6600*4000 | 15500*6600*4000 |
Control system | SIEMENS 828D | 840D |
※ This series supports non-standard customization. If necessary, please contact local dealers and our sales staff
Still can’t find your vertical machining center?
Contact Our Experts For A
Professional & Cost-Effective Solution
Innovative Crossbeam Design for Enhanced Z-Axis Rigidity
The HPG Series CNC Gantry Machining Centers feature HIRUNG’s patented “box-in-box” crossbeam design, incorporating four guide rails on the Z-axis. This advanced engineering ensures exceptional rigidity and stability during machining operations, leading to superior precision and performance.
Our Casting Formula
Unique casting technology, guarantee the quality of cast iron The Processing procedure of HIRUNG cast iron
casting→ tempering treatment→ rough processing→ delicate processing→painting dressing → finish machining → packaging→ end product
The so-called secret cast iron formula—the true material counts
We purchase standard original material, and we also add the following ingredients to ensure the high rigidity and high.
碳 | 矽 | 錳 | 磷 | 硫 | 銅 | 鋁 | 鉻 | 鎳 |
C | Si | Mn | P | S | Cu | Al | Cr | Ni |
3.1〜3.25 | 1.6〜1.9 | 0.6〜0.85 | 0.06〜0.1 | 0.06〜0.1 | 0.2〜0.6 | < 0.2 | 0.1〜0.2 | < 0.5 |
% | % | % | % | % | % | % | % | % |
鉬 | 鈦 | 釩 | 鈷 | 鉛 | 氮 | 錫 | 鎂 | / |
Mo | Ti | V | Co | Pb | N | Sn | Mg | |
< 0.5 | 0.05〜0.1 | <0.02 | < 0.1 | <0.01 | 80〜100 | <0.01 | <0.006 | |
% | % | % | % | % | ppm | % | % |
Spindle
3-axis machine tools
The spindle adopts P4 Japanese NSK bearings with precision dust-free configuration, and the spindle suspension is controlled within 0.003mm.
Standard equipment: 10000rpm direct-coupled spindle
Optional
- 18000/24000rpm built-in electric spindle Spindle taper: ISO#40 (BT40/BBT40/HSKA63)
- It can also be configured with BT50/HSK A100 and other configurations
*Different models have different configuration options. Please contact the sales manager for details.
5-axis machine tools
MEPRO T70 | MEPRO T200 | MEPRO T400 | ||||
(standard) | (Optional) | (Optional) | ||||
single arm support | double arm support | |||||
A Axis | C Axis | A Axis | C Axis | A Axis | C Axis | |
Rotation range | ±110° | ±360° | ±110° | ±360° | ±110° | ±360° |
positioning accuracy | 8” | 8” | 8” | 8” | 8” | 8” |
Repeatability | 4” | 4” | 4” | 4” | 4” | 4” |
rotational speed | 60rom | 60rpm | 60rpm | 60rpm | 60rpm | 60rpm |
Rotational torque(Nm) | 700/1060 | 715/1350 | 1600/2600 | 1600/3000 | 1600/2600 | 1600/3000 |
Clamping torque(Nm) | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 |
S1 power(KW) | 30 | 35 | 70 (OP 76) | |||
S6 power(KW) | 45 | 50 | 80(OP 90) | |||
S1 torque(Nm) | 72 | 161(OP 210) | 350(OP415) | |||
S6 torque(Nm) | 85 | 216.2(OP 261) | 454(OP 630) | |||
Maximum speed (grease) rpm | 18000 | 15000(OP 10000) | 8000(OP 6000) | |||
Maximum speed (oil and gas) | 24000 | 8000 | ||||
Spindle form | HSK A63 | HSK A100 | HSK A100 |
Application
Why Choose HIRUNG?
We tailor everything for you. Every day our design engineers think about:
- How to provide customers with more convenient maintenance?
- How to provide customers with the most stable equipment?
- How to achieve zero machine failure rate?
Believe in HIRUNG, you will have a good experience!
