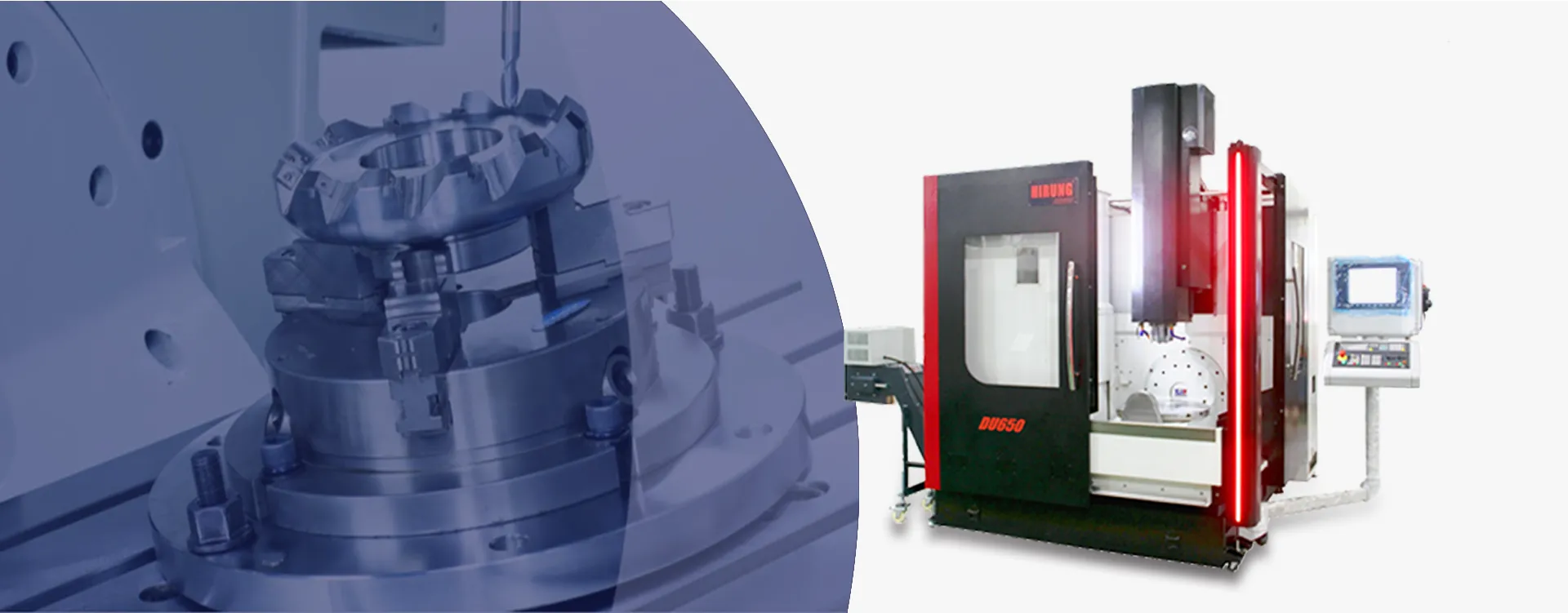

5 Axis Universal Machining Center DU Series
Experience the DU Series—a cutting-edge “technology crystal” from Germany that’s redefining “Made in China.” With unmatched accuracy, stability, and efficiency, this 5 axis CNC machining center sets a new standard for global manufacturers seeking precision and high performance.
![](https://hirung.com/wp-content/uploads/2024/06/DU-Series.webp)
Machine Tool Structure
![5 Axis Universal Machining Center DU Series - DU 650 /1060](https://hirung.com/wp-content/uploads/2024/05/01-4.webp)
![5 Axis Universal Machining Center DU Series - DU200](https://hirung.com/wp-content/uploads/2024/05/02-3.webp)
- German Mihanite FC30 Cast Iron: Leveraging FEM (Finite Element Method) analysis and a patented heat-treatment formula, these 5 axis CNC machining centers offer exceptional rigidity and long-term stability.
- Widened Base Design: By separating the X/Y/Z axis from the B/C axis, the moving parts remain lightweight, effectively enhancing machining accuracy.
- High Performance Models: Choose between the DU 650/1060 or the DU200 model, each engineered to deliver precision and reliability—ideal for manufacturers seeking cutting-edge 5 axis machining solutions.
DU Series 5 Axis CNC Machining Center: Machine parameters
Name | Unit | DU200 | DU650 | DU1060 |
Worktable size | mm | 200 | 650 | Φ720*600(OPΦ800) |
X-axis travel: | mm | 270 | 620 | 1020 |
Y-axis travel: | mm | 270 | 520 | 600 |
Z-axis travel: | mm | 310 | 460 | 600 |
B-axis travel: | deg | ±110° | +110° ~ -60° | |
C-axis travel: | deg. | 360° | 360° | |
Spindle nose table surface | mm | 100-410 | 150-610 | 150-750 |
Spindle center to column | mm | – | 171 | |
Maximum load capacity of Worktable | KG | 25 | 0°:500/ 90°:300 | |
Spindle speed | rpm | 2.4 | 18000–HSK A63 24000-HSKA63 | |
Spindle power(S1/S3) | KW | 3.7/5.5 | 30 | |
Spindle specifications | #30/ISO 20 | HSK A63 | ||
Spindle torque(S1/S6) | Nm | 18/35 | 72/85—18000rpm | |
47.7/57.3–24000rpm | ||||
X/Y/Z/B/C Axis feed motor torque | Nm | 20/20/27/27/15 | ||
Rapid feed rate(X/Y/Z) | M/min | 15/15/15 | 42/42/42 | |
B/C axis fastest speed | rpm.min | 20/20 | 25/25 | |
Rapid feedrate | mm.min | 10000 | 10000 | |
ATC capacity | 16 | 32 | ||
Maximum tool diameter (full tool/empty tool) | mm | 50 | Ø76/127 | |
Maximum tool length | mm | 145 | 250 | |
Maximum tool weight | KG | 4 | 7 | |
Tool exchange time(T-T/C-C) | sec | 2.0/5.0 | 1.5/5.5 | |
Cutting fluid motor power | KW | 0.78 | 1.1+1.1 | |
battery capacity | KVA | 15 | 50 | |
power supply | 380V/50Hz | 380V/50Hz | ||
positioning accuracy (ISO 230-2) -X/Y/Z | mm | 0.01 | ±0.005 | |
positioning accuracy(B/C Axis ) | sec | 0.006° | 10” | |
Repeatability (ISO 230-2) -X/Y/Z | mm | 0.005 | ±0.002 | |
Repeatability (B/C Axis ) | sec | 0.004° | 5” | |
Machine size(L/W/H) | mm | 1680/2060/2460 | 3150/2850/2900 | 3350/2990/3100 |
Machine weight | KG | 3000 | 6800 | 8500 |
NC | LYNUC N3 | Siemens ONE | ||
Display | 12inch | 15 inch (OP 19 inch) |
STANDARD ACCESSORIES
1.Fully enclosed guard
2.2. working light
3. Arm type tool magazine
4.warning light
5. Spindle oil cooling
6.M30 Auto power off
7.cutting coolant system
8. Removable hand artery balance generator
9.Automatic centralized lubrication system
10.RS-232
11.Hydraulic unit
12.Electric box heat exchanger
13.Spindle blowing device
14.tool box
15.Chip cutting device
16.Leveling bolts and pads
17.Automatic chip conveyor and chip trolley
18.Operation and maintenance manual
OPTIONAL ACCESSORIES
1. 3Axis optical ruler
2.Cooling throught spinde (CTS) 24/45/70bar
3.Totally enclosed shroud (top)
4.Electrical box air conditioner
5.Oil mist collector
6.Water separator
7.Automatic tool measuring device(Renishaw TS27R/BLUM ZX-speed)
8.Non-contact tool measuring device
9.Workpiece detection device (Renishaw OMP40-2 / BLUM TC52)
10.Workpiece inspection device (MULM TC52 or TC60),
5-axis center calibration included
![](https://hirung.com/wp-content/uploads/2024/05/bj-1.webp)
Advanced B/C Axis and Spindle Technologies
- Worm Gear B/C Axis: Equipped with a HEIDENHAIN circular scale to ensure lasting accuracy. Even after years of use, only minimal adjustments (every five years) are needed to maintain “like-new” precision. This worm gear design also lowers maintenance costs compared to built-in motor transmissions.
- High-Speed Built-In Spindle: While preserving Z-axis rigidity, the spindle offers selectable speeds of 18,000 or 24,000 rpm. Cutting torque ranges from 47.7 Nm to 100 Nm, providing flexibility for both heavy-duty cutting and precision finishing.
- 32T Chain Tool Magazine: The standard 32-tool chain magazine enables rapid tool changes and superior stability, boosting overall machining efficiency.
Still Searching for the Right 5 Axis Vertical Machining Center?
Contact Our Experts For A
Professional & Cost-Effective Solution
High-Performance Spindle System
- HSK A63 Tool Interface: Provides stronger clamping force, enhancing precision during high-speed operations.
- Built-In Oil Cooler: Prevents thermal expansion caused by motor heating, ensuring consistent accuracy.
- 30 kW Electric Spindle: Delivers both high speed and high torque—ideal for precise machining and occasional heavy cutting in a 5 axis CNC machining center.
![Spindle Parameters - High-Performance Spindle System](https://hirung.com/wp-content/uploads/2024/05/bjdd.webp)
![](https://hirung.com/wp-content/uploads/2024/05/bdjde.webp)
Industry Applications for 5 Axis CNC Machining Centers
Ideal for producing high-precision, complex components, this 5 axis CNC machining center is widely used in aviation, aerospace, medical, automotive, and other demanding industries.
Note: This machine must not be used for manufacturing weapons of mass destruction or related accessories.
